Understanding Solar Panel Technology & Evolution

Solar panels have come a long way from their early days of bulky, low-efficiency cells. Today’s panels are sleek, smart, and built to maximise energy output — even in Australia’s harsh conditions. In this guide, we break down how solar panel technology has evolved, what to look for in a high-quality panel, and why it matters when choosing a system with Yello Energy Group.

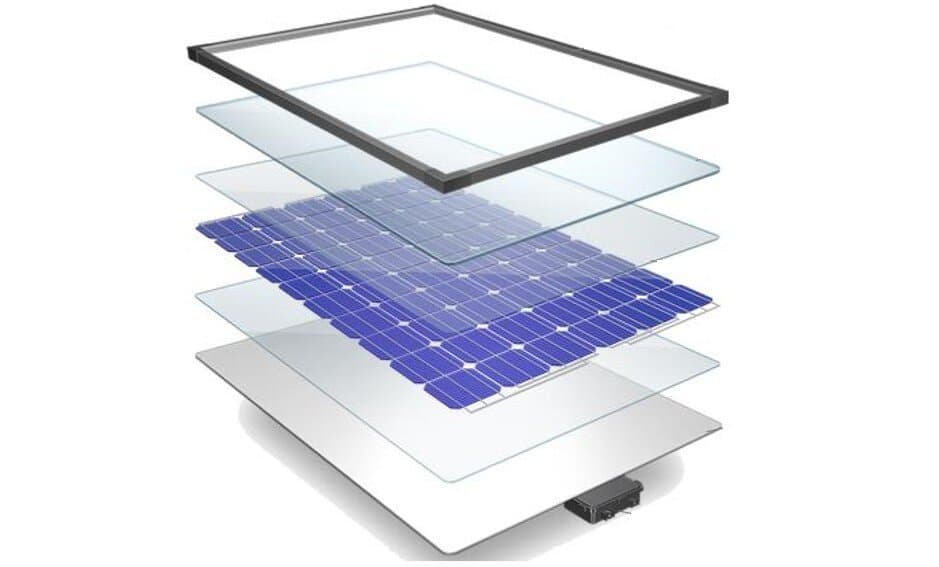

What Is a Solar Panel Made Of?

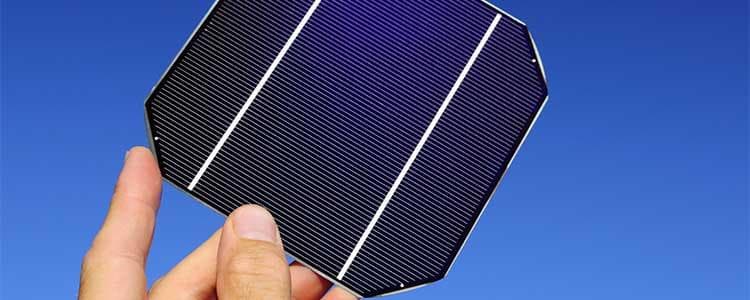

At the core of every solar panel are solar cells — the tiny squares you see on the surface. These cells convert sunlight into electricity using the photovoltaic effect. Each panel includes:

A layer of solar cells (monocrystalline or polycrystalline)
EVA film for protection
Tempered glass front cover
Backsheet and aluminium frame
A junction box for wiring and safety

Evolution of Solar Cell Technology

Standard Solar Cells (Pre-2015)

Basic monocrystalline or polycrystalline cells.
Low to mid efficiency (~14–17%)
Larger gaps between cells = more energy loss.

Half-Cut Cells

Cells are sliced in half, reducing resistance.
Improves performance in partial shading.
Higher output & better thermal stability.

Multi Busbar (MBB) Cells

Instead of 3–5 thick busbars, panels now have 9–16 thin wires.
Increases light capture and lowers resistance.
Boosts efficiency and panel durability.

Split Cell Panels

Panels split into two halves, working independently.
Reduces power loss from shading or damage.
Keeps output steady under real-world conditions.

N-Type Cells (New Gen)

More efficient and stable than traditional P-Type cells.
Lower degradation = longer life.
Ideal for long-term ROI and premium installs.

Bifacial Panels (Emerging)

Absorbs sunlight from both sides of the panel.
Best suited for commercial installs or reflective rooftops.

Panel Size & Wattage Evolution

As tech has improved, panel sizes and outputs have increased without needing more roof space.

Year Range	Typical Panel Wattage	Avg. Size (mm)
2010–2015	250–300W	1650 x 990
2016–2019	300–350W	1700 x 1000
2020–2023	370–420W	1750 x 1050
2024+ (Now)	440–550W	1800–1900 x 1100–1150

More watts = more power per panel = fewer panels needed.At Yello Energy, we customise your system based on roof space, shading, and energy usage — not just panel size.

Technology Features to Look For

When comparing solar panels, check for these premium technologies:

Feature	Why It Matters
MBB (Multi Busbar)	More current pathways = better efficiency
Half-Cut Cells	Lower resistance & better low-light performance
N-Type Cells	Less degradation, longer performance life
PERC Tech	Boosts light absorption inside the cell
Split Junction Box	Safer and more stable heat dissipation
Black Frame/Glass	Sleek look, ideal for modern homes
All-Black Panels	Stylish, uniform finish with slightly lower output

Bonus: Key Panel Terms Explained (Quick Glossary)

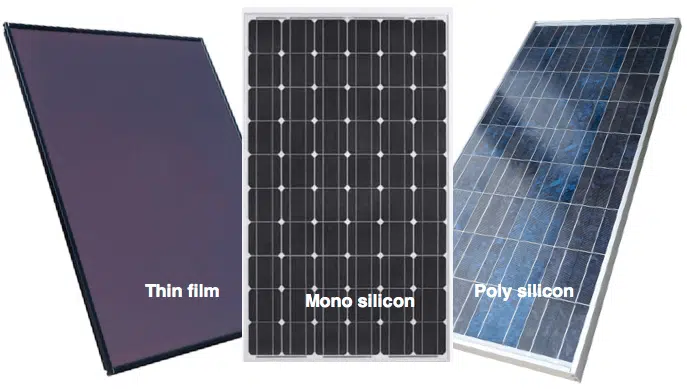

Monocrystalline – Single-crystal silicon, more efficient, dark appearance.
Polycrystalline – Older tech, lower efficiency, blue tint.
PERC – Passivated Emitter Rear Cell, boosts absorption.
STC Rating – Power output tested under ideal lab conditions.
Temperature Coefficient – How panel performs in real heat (lower = better)

Choosing the Right Panel with Yello

We supply and install high-efficiency panels from Tier 1 brands including:

Trina Solar
Jinko Solar
Risen Energy
Canadian Solar
JA Solar
DMEGC Solar

Each panel is backed by 25-year product and 30-year performance warranties, ensuring long-term results under Australia’s climate.
